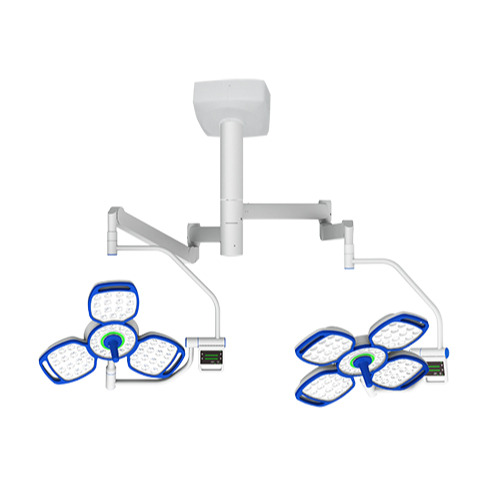

Hospital Operation Theatre Ceiling Shadowless Surgical Lamp Operating Lamp Led LightModel No.#Geeta 650
Surgical Lighting Instroduction:
long lifecyle led bulb surgical operation light / lamp surgical lights
· Fepdon professional coating of heat sink has created an excellent heat dissipation effect.
· Intelligent touch screen, flip back and forth
· Titanium alloy balance arm, no welding, never rust
Shadowless Operation Theatre Lamp
1.An imported LED cold light source, ultra-thin optical lens.
2.With manual adjustment of the spot diameter and electric adjustment of color temperature function.
Unique Multi-faced Reflectors
The light of each “Bowl”is combined in a perfect way into the surgical field, therefore color shadow and contour shadow are no longer emerge.
Suitable color temperature effect according to the wide range tissue types; wound position texture
Motorized Electrical Focusing System
Deviate from optional facular adjustment, the lamp creates a focusing structure inside the dome which is motorized driving by handle.
Features:
Longer working life
Low power consumption
Easy to install
Advance Features:
On Ceiling Mount LED Light should be flexible and stable balance arm suspension system for requirement of height and angle
Illuminance should be Greater than or equal to 160000 LUX
Lamp Head Diameter of light should be 500 mm
Color temperature 4500±500K.
Color reduction index 95
Illumination depth approximately 500 mm.
Dimming range is of 30-100%
Working Theory:
The shadowless surgical lamp uses Optical lens reflected and refracted light from LED lamp bead, and then through the lamp body structure, the light spots generated by multiple LED lamp beads are converged at the center directly below the lamp head at a distance of 1 m from the lamp head, thereby forming a lighting effect that satisfies the working use.
Application Ranges:
The shadowless surgical lamp is applied in medical institutions to provide auxiliary lighting for the operating room, to locally illuminate the patient's surgery or examination area. It is an illuminating lamp without automatic failure-preventing function, and can also be used alone for small surgery without shadowless effect.
Techanical Parameter
|
No. |
Items |
Geeta600 light head panel(4 parts type) |
Geeta500light head panel(3 parts type) |
|
1 |
lamp head diameter |
740mm |
740 |
|
2 |
lamp max illumination: |
160000lx |
140000lx |
|
3 |
color reduction index CRI(Ra) |
≥95 |
|
|
4 |
Illumination adjusting range |
40000~160000lx |
40000~140000lx |
|
5 |
illuminance temperature rising |
<0.5℃ |
<0.5℃ |
|
6 |
color temperature |
4500K±10% |
4500K±10% |
|
7 |
light spot diameter(d10) |
18~25cm |
18~25cm |
|
8 |
Light spot diameter / light spot distribution(d10/d50) |
0.65 |
0.55 |
|
9 |
Lighting depth |
120cm ±5% |
100cm ±5% |
|
10 |
Deep Cavity Shadowless Rate |
100% -5% |
100% -5% |
|
11 |
Single board shadowless rate |
80% -5% |
65% -5% |
|
12 |
Single Board Deep Cavity Shadowless Rate |
75% -5% |
60% -5% |
|
13 |
Single Board Shadowless Rate |
75% -5% |
60% -5% |
|
14 |
Double Boards Deep Cavity Shadowless Rate |
65% -5% |
55% -5% |
|
15 |
Radioactivity Ee/Ec(MW/m²lux) |
≤3.6MW/m²lux |
≤3.6MW/m²lux |
|
16 |
Max Radioactivity(Ee) |
<500w/m² |
<380w/m² |
|
17 |
Lamp bead lifecycle |
>60000h |
|
|
18 |
Input Power(VA) |
220VA |
180VA |
|
19 |
Input voltage, frequency, fuse |
AC 220V±10%, 50Hz±5%, F3AL 250V |
|
Hospital Operation Theatre Ceiling Shadowless Surgical Lamp Operating Lamp Led
Surgical LED Operating Room Light
· Fepdon professional coating of heat sink has created an excellent heat dissipation effect.
· Intelligent touch screen, flip back and forth
· Titanium alloy balance arm, no welding, never rust
We, Fepdon Medical Factory, as a professional manufacturer of Shadowless Operation Theatre Lamp, we can provide you with surgical lamps with or without built-in camera or display system.
Here are some pictures for your further reference.
You can choose to add or delete camera system or display system according to your specific requirement for shadowless surgical lamp.
Shanghai Fepton Medical Equipment Co,ltd.
Established in 2009,Shanghai Fepdon Medical Equipment Co.,Ltd is a professional manufacturer engaged in the researches,development,production,sale and services of medical pendants,operation light,Operation table and Medical Gas system, UV sterilizer machine and many others.
Our factory covers over 7000m2, with more than 200 workers and 10 senior engineers; it has the welding workshop, mechanical processing workshop, assembly workshop, warehouse workshop, etc. With more than 10 years R&D experiences, we have exported our products to over 30 countries.
we’ll keep making efforts to produce innovative new products to meet our grand clients’ needs.
Now our most products are approved by CE,ISO9001:13485, ECM,TUV,NQA certificated. etc.
Our mission is to provide best solution for medical solutions for hospitals and medical centers worldwide.
If you want to consult us about Hospital Operation Theatre Ceiling Shadowless Surgical Lamp Operating Lamp Led and other hospital furniture or equipments,welcome to contact us freely for details.
